Image Gallery for hydrogen generator systems October 2023

Image Gallery for hydrogen generator kits is a Collection of hydrogen fuel systems and accessories over the past 14 years of company operation.

The system shown above has been used in very, very, very,  hard outback Australian terrain as the owner is Prospecting for Gold (succerssfully I’m told) in Western Australian goldfeilds.

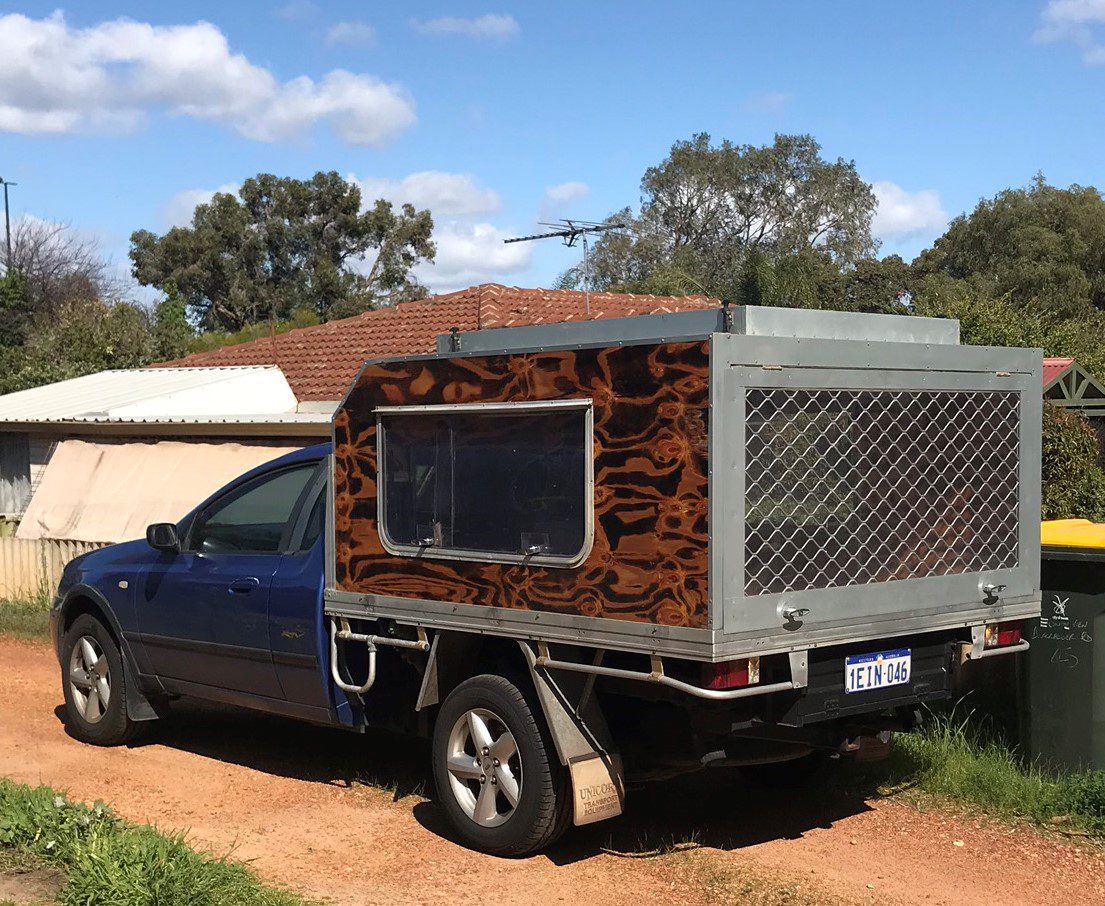

Gen 15 system Mounted on Campervan – 35% fuel savings

These series of Photos show a Gen 15 system Mounted into a steel box which is then mounted into a frame that can easily be rotated in and out from under the tray to be topped up with water for the electrolyte.

As can be seen the steel enclosure takes a fair amount of rough treatment, on the underside of the campervan tray, and still protects the systems contents.

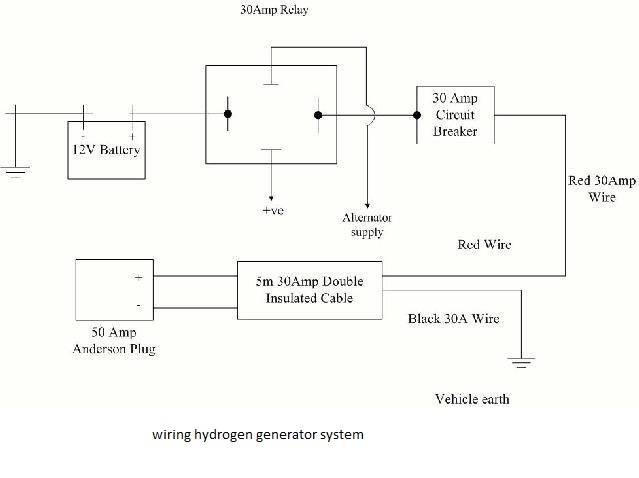

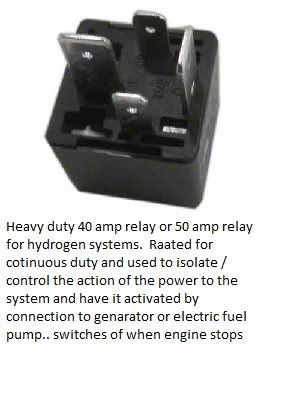

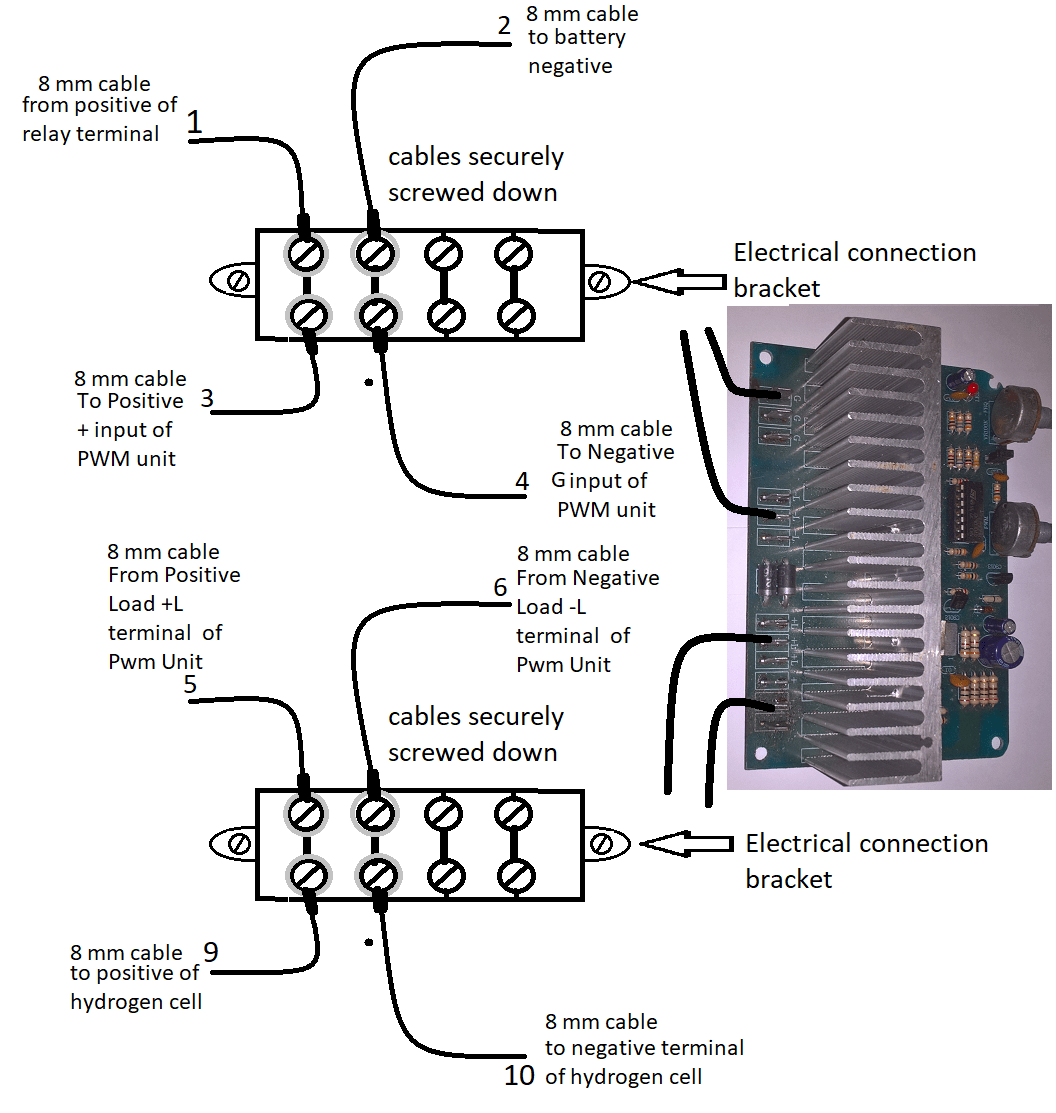

8mm twin core B&S cable connects toe unit to the vehicle battery via a 40 amp manual reset circuit breaker and a constant on 60 amp solenoid relay – Both parts are available in our STORE

Image gallery

These Hydrogen HHO generators have been Australian patented and reported shown to deliver city driving fuel savings between 34% and 44 %.

Recent independent test on a number of typical Family vehicles reported  36% savings in heavy traffic at 30 km/hr and 42% savings in slow moving highway traffic at 50 km/hr,  These  tests were performed on  2.4 litre and 3.6 Litre vehicles over an extended  period.

Testing on a 7.2 litre 2022 diesel fueled Truck  Reported savings of 31% for test 1 and 32% for test 2

The Truck was a fully loaded  7.2 Litre 2022  diesel trucks loaded to 27 tonne.

Several clients report savings over 42% when operated Primarily on open roads.

• Bob Bishop. has reported fuel savings in his Nissen 4WD of 51%, driving on open road in Australian outback.
• Client Keith B has reported savings of 45% plus in his 4.2 L Utility, driving on country open roads, between country towns in West Australia.
• Heavy Trucking groups report savings of 15%-20% + and an increase in Power and torque. The trucks are driven both country and city.  Drivers report using hydrogen injection is “Like having an extra Gear” when driving up steep inclines pulling a fully loaded truck.
• Image gallery Photos below show a 6 Litre Unimog Truck with a Gen 15 Hydrogen system
• Massive reduction in emissions of hydrocarbons, particular matter, carbon dioxide , carbon monoxide, nitrous oxide – reported results April 1 2023

• For More information call Gavan on +61 0403177183       or   email    glknox11@live.com        or       gavan@hfuel.com.au

1. Gen 15 hydrogen generator kit/system in Campervan increases the fuel efficiency , Power and torque
2. Gen 15 Hydrogen Generator kit/system fits neatly in rear of campervan for Kevins Propecting in WA 53cm x 25 cm x 39 cm high

October
4 GGen 10 Hydrogen Generator Kit in a plastic battery box 41 cm x 21 cm x 33 cm high . System used to deliver 42% savings for a 3.2 Litre vehicle Pune. Oct 5 2023

•
•
•
•

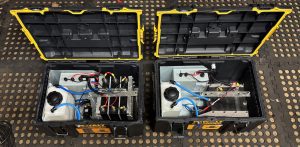

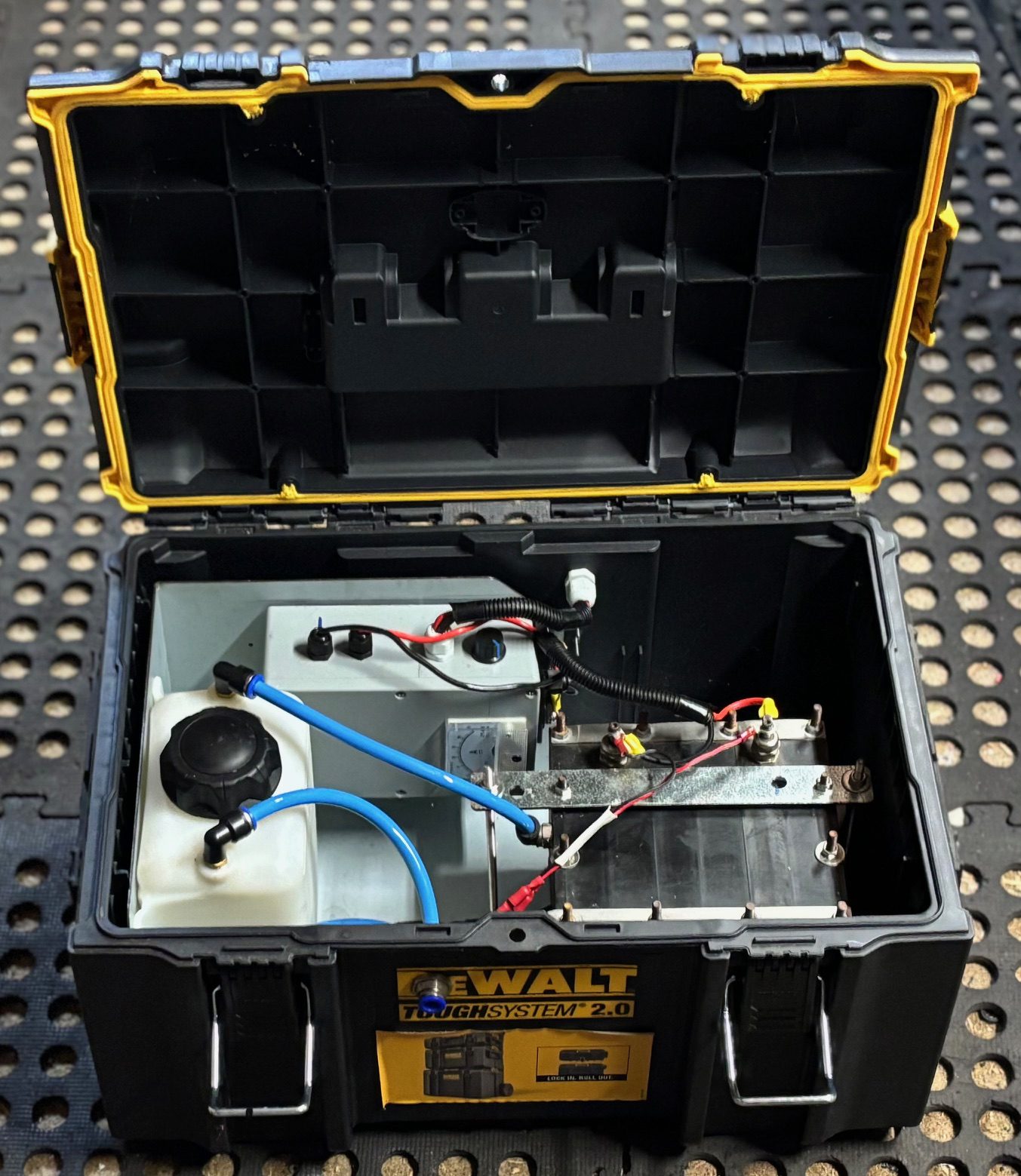

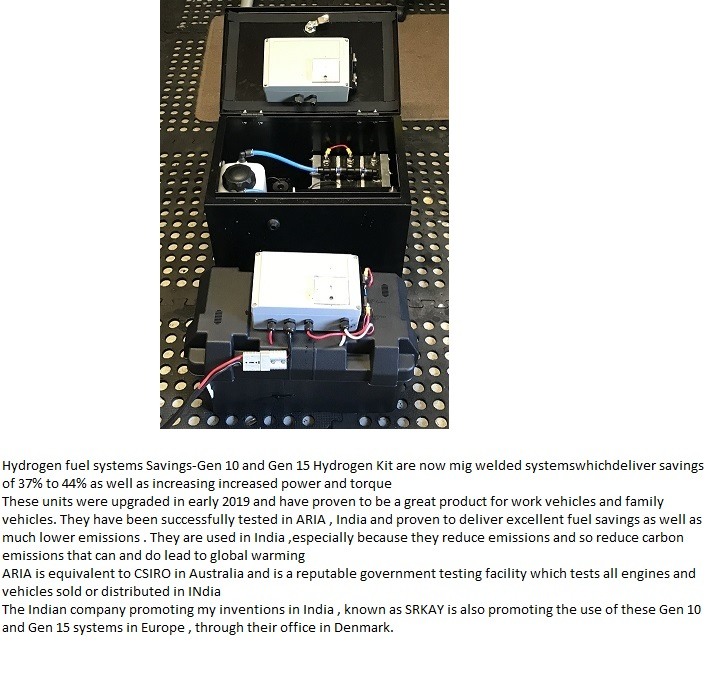

• Gen 10 and Gen 15  Hydrogen Generators with stainless steel pipe fittings – stronger more robust fittings ideal for industrial applications…. Used on all systems from April 2023
• Testing Gen 10 HHO kits have reported 4.2 Litres gas per minute
• Testing Gen 15 HHO kits have reported 7.2 Litres gas per minute
• See data hydrogenfuelsystems.com.au

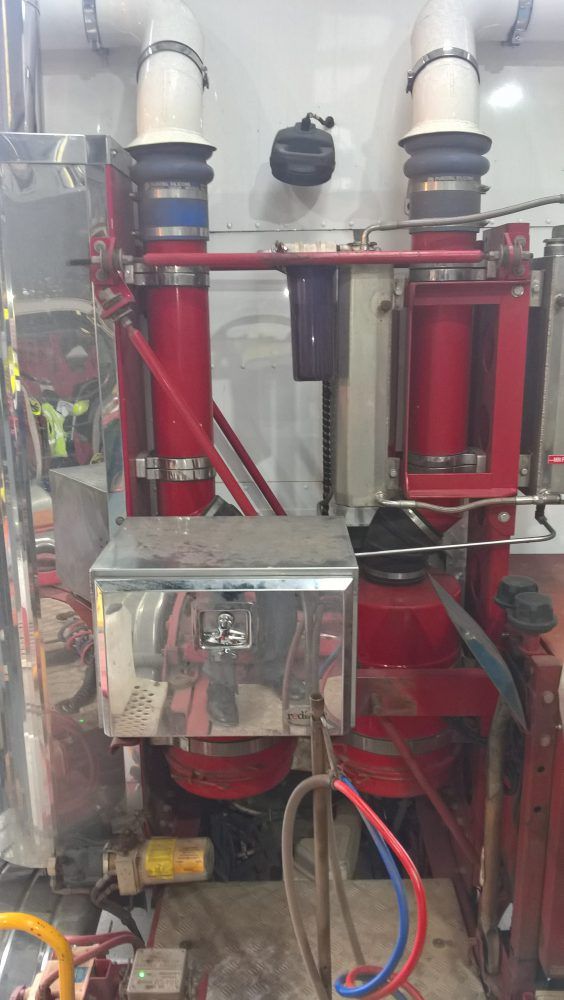

Gen 20 Hydrogen generator assembly layout on a vehicle
