Description

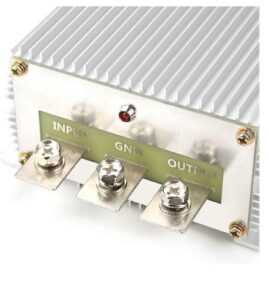

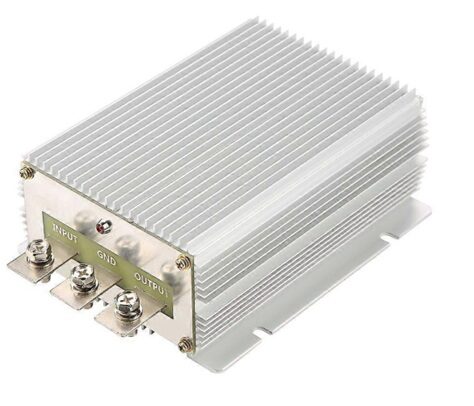

24V to 12V 50A Non Isolated DC Buck Converter High Power Step Down Power Supply 600W



Features:

1. Adopting imported precision components, conversion efficiency up to 96%, stable output.

2. Wide input voltage, built-in overcurrent, overvoltage, over temperature, short circuit and other automatic protection functions.

3. Sealed with high quality thermal conductive silicone, IP68 waterproof, dustproof, anti-shock.

4. Die-cast aluminum shell, compact size, convenient to install.

5. Quality assurance, service life up to 100,000 hours.

Specification:Model: WG-24S1250Input voltage:

DC 24VInput voltage range: DC 18-35V

Conversion efficiency: 96%

Output voltage: 12V

Output current: 50A

Rated output power: 600W

Output peak power: 780W

Voltage regulation ratio: <1%

Load regulation ratio: <2%

No load current: <40mA

Ripple: <300mV

Working temperature: -35~80℃

Waterproof rating: IP68

Item size: 150*127*63mm / 5.9*5*2.5in

Package weight: Approx. 1490g / 52.5oz

Package list:1 * DC-DC Power Supply

Note:This module has no polarity protection, please wire carefully while installing. If you wire wrongly, this power supply will be damaged.
