$95.00Original price was: $95.00.$70.00Current price is: $70.00. gst

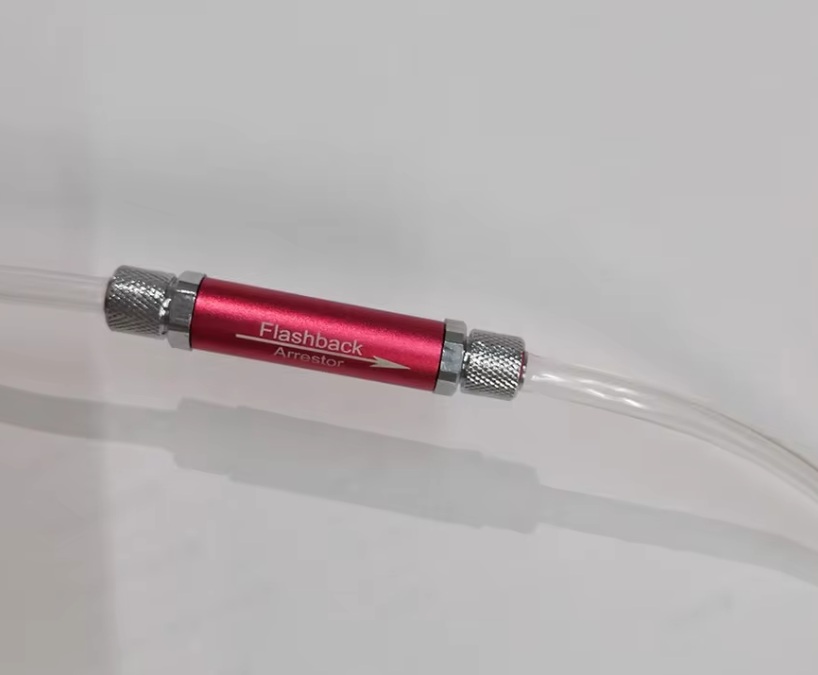

Hydrogen Flashback arrestor. Commercial quality Oxy – Hydrogen Flashback Arrestor. Thick vacuum sintered internal porous metal shield in conjunction with a high quality check valve. Rated at 116 liters per minute, or 7000 liters per hour. Maximum working pressure for Hydrogen Flashback arrestor is 140 psi (10 bar). All brass heavy duty housing. Fits 1/4 ID hose. The very best flashback arrestor.
Minimum operating pressure: 3 psi. The check valve does produce minimal back pressure, about 2 psi.
The biggest safety concern when using hydrogen flashback arrestors is the chance of exceeding the volume rating of the arrestor. Many flashback arrestors are only rated at 10 liters per minute. If you exceed that volume, and a flashback occurs, these low volume arrestors may not stop the flashback.
This is why we sell only high volume commercial quality flashback arrestors, with the added protection of an internal check valve. For your safety, it is best not to take a chance on low volume arrestors. Only high volume arrestors will offer you the safety that you need to be assured you and your system are protected.
Upgarded Flashback Arrestor for Oxygen Hydrogen HHO Flame Generator Machine
Description:
1. Professional water hydrogen flame fire arrestor safety devices;
2. Material: brass chrome plated;Necessary accessories for Water hydrogen flame machine
3. It is generally put between two tubes behind water hydrogen Flame Gun, 1.5-2mm from machine outlet, and 0.3-0.5m from the gun.
Feature:
1. Professional water hydrogen flame fire arrestor safety devices;
2. Screw pressing design
3. Can be used for any other similar machines.
Usage:
Hose interface adopts screw pressing design, please pay attention to the pressing rubber hose. It is generally put between two tubes behind water hydrogen flame gun,
1.5-2mm from machine outlet, and 0.3-0.5m from the gun.
Note:
1.The lifespan of the flash-back arrestor is limited, multiple flashback will reduce its reliability, residual electrolyte may cause blockage.
2.If the flashback arrestor is block or does not work, please check or change it immediately. replace the new one timely. Otherwise, it may cause explosion and unable to work.
Hydrogen Flashback . Hydrogen Flashback arrestor. Commercial quality Oxy – Hydrogen Flashback Arrestor. Thick vacuum sintered internal porous metal shield in conjunction with a high quality check valve. Rated at 116 liters per minute, or 7000 liters per hour. Maximum working pressure for Hydrogen Flashback arrestor is 140 psi (10 bar). All brass heavy duty housing. Fits 1/4 ID hose. The very best flashback arrestor.
Minimum operating pressure: 3 psi. The check valve does produce minimal back pressure, about 2 psi.
The biggest safety concern when using hydrogen flashback arrestors is the chance of exceeding the volume rating of the arrestor. Many flashback arrestors are only rated at 10 liters per minute. If you exceed that volume, and a flashback occurs, these low volume arrestors may not stop the flashback.
This is why we sell only high volume commercial quality flashback arrestors, with the added protection of an internal check valve. For your safety, it is best not to take a chance on low volume arrestors. Only high volume arrestors will offer you the safety that you need to be assured you and your system are protected.
Upgarded Flashback Arrestor for Oxygen Hydrogen HHO Flame Generator Machine
Description:
1. Professional water hydrogen flame fire arrestor safety devices;
2. Material: brass chrome plated;Necessary accessories for Water hydrogen flame machine
3. It is generally put between two tubes behind water hydrogen Flame Gun, 1.5-2mm from machine outlet, and 0.3-0.5m from the gun.
Feature:
1. Professional water hydrogen flame fire arrestor safety devices;
2. Screw pressing design
3. Can be used for any other similar machines.
Usage:
Hose interface adopts screw pressing design, please pay attention to the pressing rubber hose. It is generally put between two tubes behind water hydrogen flame gun,
1.5-2mm from machine outlet, and 0.3-0.5m from the gun.
Note:
1.The lifespan of the flash-back arrestor is limited, multiple flashback will reduce its reliability, residual electrolyte may cause blockage.
2.If the flashback arrestor is block or does not work, please check or change it immediately. replace the new one timely. Otherwise, it may cause explosion and unable to work.
To order a Unit —- 1. Order through Paypal or
2. Email me on glknox11@live.com or
3. SMS message to 0403177183
with your name , Phone number , email address and Postal address and I will email you a Quote , my Company ABN and Payment Details
Item is available though Paypal or via Visa card payment. 10% GST and Postage are extra on this purchase.
Call Gavan on 0403177183 if you wish to purchase and Gavan will send you an invoice for the units with bank payment details .
